材质 |
型号 |
|
WCB |
H44H/Y-16C～100 |
|
304 |
H44W-16P～100P |
|
316 |
H44W-16R～100R |
|

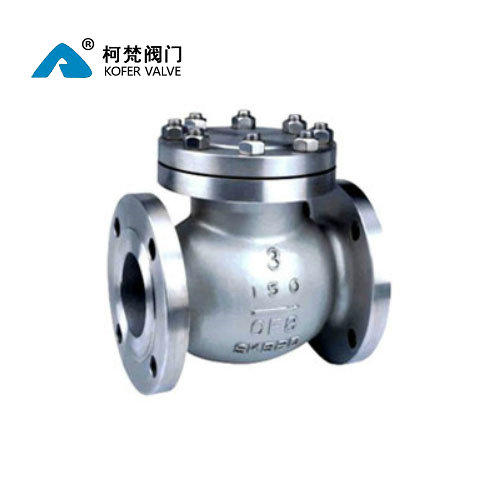

H44法兰旋启式止回阀性能规范 |
||||
|
公称压力 |
HRRH/Y-16C～100 |
H44W-16P～100P |
H44W-16R～100R |
|
|
工作压力（MPa） |
1.6~10.0 |
|||
|
适用温度（℃） |
≤350 |
≤200 |
||
|
适用介质 |
水、油、气、蒸汽 |
腐蚀性介质 |
||
|
材料 |
阀体、阀盖 |
WCB |
304 |
316 |
|
阀板 |
2Cr13，304,316 |
|||
|
密封面 |
合金钢，司太立 |
|||
|
销轴 |
2Cr13，304，316 |
|||
|
H44法兰旋启式止回阀外形尺寸(mm) |
||||||||
|
公称通径 DN |
L |
D |
D1 |
D2 |
b |
Z-d |
H |
|
|
|
||||||||
|
25 |
160 |
115 |
85 |
65 |
16 |
4-14 |
100 |
|
|
32 |
180 |
135 |
100 |
78 |
16 |
4-18 |
105 |
|
|
40 |
200 |
145 |
100 |
85 |
16 |
4-18 |
115 |
|
|
50 |
230 |
160 |
125 |
100 |
16 |
4-18 |
135 |
|
|
65 |
290 |
180 |
145 |
120 |
18 |
4-18 |
142 |
|
|
80 |
310 |
195 |
160 |
135 |
20 |
8-18 |
165 |
|
|
100 |
350 |
215 |
180 |
155 |
20 |
8-18 |
180 |
|
|
125 |
400 |
245 |
210 |
185 |
22 |
8-18 |
210 |
|
|
150 |
480 |
280 |
240 |
210 |
24 |
8-23 |
233 |
|
|
200 |
500 |
335 |
295 |
265 |
26 |
12-23 |
304 |
|
|
250 |
550 |
405 |
355 |
320 |
30 |
12-25 |
348 |
|
|
300 |
650 |
460 |
410 |
375 |
30 |
12-25 |
390 |
|
|
350 |
750 |
520 |
470 |
435 |
34 |
16-25 |
430 |
|
|
400 |
850 |
580 |
525 |
485 |
36 |
16-30 |
468 |
|
|
|||
 |
|||
|
