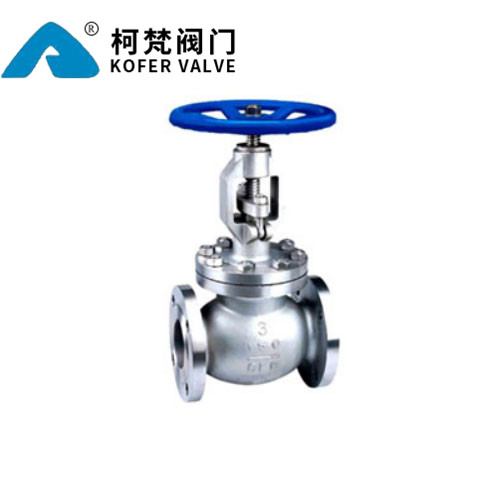

API美标截止阀
【产品说明】
API美标截止阀执行ANSI和API标准，阀瓣和阀座的密封面采用不同硬度的司太立（Stellite）钴基硬质合金堆焊而成，密封可靠、硬度高、耐磨、耐高温、耐腐蚀、抗擦伤性能好、寿命长。
【执行标准】
设计与制造：API 600
法兰尺寸：ANSI B16.5
结构长度：ANSI B16.10
对焊连接尺寸：ANSI B16.25
压力~温度：ANSI B16.34
检验与试验：GB13927
【产品型号】
|
衬里、阀座 |
型号 |
|
WCB |
JM41Y-150C |
|
CF8 |
JM41Y-150P |
|
CF3 |
JM41Y-150R |
【产品性能规范】
|
API美标截止阀主要性能规范 |
||||
|
公称压力（Lb） |
实验压力 |
工作温度 （℃） |
||
|
强度（水） （Mpa） |
密封（水） 空气 |
低压密封空气 （Mpa） |
||
|
150 |
3.0 |
2.2 |
0.6 |
350 |
|
300 |
7.5 |
5.5 |
0.6 |
|
|
600 |
15.0 |
11.0 |
0.6 |
|
|
900 |
22.5 |
16.5 |
0.6 |
|
|
1500 |
30.0 |
22.0 |
0.6 |
|
【主要零件材质】
|
API美标截止阀主要零件材质 |
|||
|
零件名称 |
材质 |
||
|
阀体/阀盖 |
WCB |
CF8 |
CF3 |
|
阀瓣 |
WCB |
CF8 |
CF3 |
|
阀杆 |
13Cr |
304SS |
316SS |
|
填料 |
柔性石墨 |
PTFE编织 |
PTFE编织 |
|
垫片 |
304L+石墨 |
304L+PTFE |
316L+PTFE |
|
压盖 |
WCB |
CF8 |
CF3 |
|
填料压环 |
WCB |
CF8 |
CF8 |
【主要外形连接尺寸】
|
DN |
150Lb |
|||||||
|
in |
L |
D |
D1 |
D2 |
b |
n-φd |
H |
D0 |
|
1/2 |
108 |
89 |
60.5 |
35 |
11.2 |
4-16 |
241 |
100 |
|
3/4 |
117 |
98 |
69.9 |
43 |
12.7 |
4-16 |
241 |
100 |
|
1 |
127 |
108 |
79.2 |
51 |
14.2 |
4-16 |
242 |
125 |
|
11/4 |
140 |
117 |
89 |
63 |
16 |
4-16 |
280 |
160 |
|
11/2 |
165 |
127 |
98.6 |
73 |
17.5 |
4-16 |
286 |
160 |
|
2 |
203 |
152 |
120.7 |
92 |
19 |
4-16 |
368 |
200 |
|
21/2 |
216 |
178 |
139.7 |
105 |
22.4 |
4-19 |
387 |
200 |
|
3 |
241 |
190 |
152.4 |
127 |
24 |
4-19 |
411 |
250 |
|
4 |
292 |
229 |
190.5 |
157 |
24 |
4-19 |
454 |
250 |
|
5 |
356 |
254 |
216.0 |
186 |
24 |
8-22 |
455 |
350 |
|
6 |
406 |
279 |
241.3 |
216 |
25.4 |
8-22 |
541 |
350 |
|
8 |
495 |
343 |
298.5 |
270 |
28.4 |
8-22 |
651 |
450 |
|
10 |
622 |
406 |
362.0 |
324 |
30.2 |
12-25.4 |
800 |
450 |
|
12 |
698 |
483 |
431.8 |
381 |
32 |
12-25.4 |
1231 |
600 |
|
14 |
787 |
533 |
476.3 |
413 |
35 |
12-29 |
1450 |
600 |
|
16 |
914 |
597 |
539.8 |
470 |
36.6 |
26-29 |
1645 |
600 |
|
DN |
300Lb |
|||||||
|
1/2 |
152 |
95 |
66.5 |
35 |
14.2 |
4-16 |
241 |
140 |
|
3/4 |
178 |
117 |
82.5 |
43 |
16 |
4-19 |
241 |
140 |
|
1 |
203 |
123 |
89 |
51 |
17.5 |
4-19 |
283 |
160 |
|
11/4 |
216 |
133 |
98.5 |
63 |
19 |
4-19 |
320 |
200 |
|
11/2 |
229 |
155 |
114.3 |
73 |
20.6 |
4-22.5 |
322 |
200 |
|
2 |
267 |
165 |
127 |
92 |
22.4 |
8-22.5 |
399 |
200 |
|
21/2 |
292 |
190 |
149.4 |
105 |
25.4 |
8-22.5 |
438 |
250 |
|
3 |
318 |
210 |
168.1 |
127 |
28.4 |
8-22.5 |
464 |
280 |
|
4 |
356 |
254 |
200.2 |
157 |
31.8 |
8-22.5 |
565 |
350 |
|
5 |
400 |
279 |
235 |
186 |
35 |
8-22.5 |
614 |
350 |
|
6 |
444 |
318 |
269.7 |
216 |
36.6 |
12-25.4 |
717 |
400 |
|
8 |
559 |
381 |
330.2 |
270 |
41.2 |
12-25.4 |
930 |
500 |
|
10 |
622 |
444 |
387.4 |
324 |
47.8 |
16-28.5 |
1012 |
550 |
|
12 |
711 |
521 |
450.8 |
381 |
50.8 |
16-32 |
1231 |
600 |
|
14 |
762 |
584 |
514.4 |
413 |
54 |
20-32 |
1450 |
600 |
|
16 |
864 |
648 |
571.5 |
470 |
57.2 |
20-35 |
1645 |
600 |
|
DN |
600Lb |
|||||||
|
in |
L |
D |
D1 |
D2 |
b |
n-φd |
H |
D0 |
|
1/2 |
165 |
95 |
66.5 |
35 |
14.5 |
4-16 |
285 |
100 |
|
3/4 |
190 |
117 |
82.5 |
43 |
16 |
4-19 |
285 |
125 |
|
1 |
216 |
124 |
89 |
51 |
17.5 |
4-19 |
313 |
160 |
|
11/4 |
229 |
133 |
98.5 |
63 |
21 |
4-19 |
328 |
160 |
|
11/2 |
241 |
156 |
114.3 |
73 |
22.5 |
4-22.5 |
365 |
180 |
|
2 |
292 |
165 |
127 |
92 |
33 |
8-19 |
444 |
200 |
|
21/2 |
330 |
190 |
149.4 |
105 |
36 |
8-22.5 |
483 |
250 |
|
3 |
356 |
210 |
168.1 |
127 |
39 |
8-22.5 |
533 |
250 |
|
4 |
432 |
273 |
216 |
157 |
45 |
8-25.4 |
622 |
350 |
|
5 |
508 |
330 |
266.7 |
186 |
52 |
8-28.5 |
750 |
350 |
|
6 |
559 |
356 |
292.1 |
216 |
55 |
12-28.5 |
800 |
450 |
|
8 |
660 |
419 |
349.3 |
270 |
63 |
12-32 |
927 |
500 |
|
10 |
787 |
508 |
431.8 |
324 |
71 |
16-35 |
1257 |
600 |
|
12 |
838 |
559 |
489 |
381 |
74 |
20-35 |
1468 |
680 |
【结构图片】
|
|||
 |
|||
|
